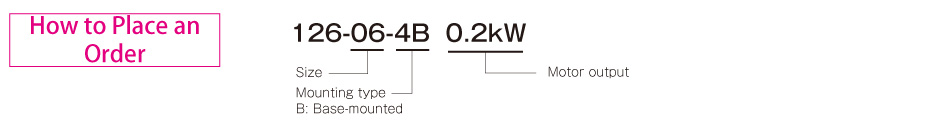

126-□-4B Types

[Specifications]

Model	Size	Dynamic friction torque Td ［N・m］	Static friction torque Ts ［N・m］	Coil (at 20℃)				Heat resistance class	Motor output ［kW］	Rotating part moment of inertia J ［kg・m2］	Total work performed until readjustment of the air gap ET ［J］	Armature pull-in time ta ［s］	Torque build-up time tp ［s］	Torque decaying time td ［s］	Mass ［kg］
				Voltage ［V］	Wattage ［W］	Current ［A］	Resistance ［Ω］
126-06-4B 0.2 kW	06	5	5.5	24 DC	11	0.46	52	B	0.2	1.28×10-4	36×106	C: 0.020/B: 0.015	C: 0.041/B: 0.033	C: 0.020/B: 0.015	8.9
126-08-4B 0.4 kW	08	10	11	24 DC	15	0.63	38	B	0.4	3.70×10-4	60×106	C: 0.023/B: 0.016	C: 0.051/B: 0.042	C: 0.030/B: 0.025	13
126-10-4B 0.75 kW	10	20	22	24 DC	20	0.83	29	B	0.75	1.40×10-3	130×106	C: 0.025/B: 0.018	C: 0.063/B: 0.056	C: 0.050/B: 0.030	18
126-12-4B 1.5 kW	12	40	45	24 DC	25	1.09	23	B	1.5	3.85×10-3	250×106	C: 0.040/B: 0.027	C: 0.115/B: 0.090	C: 0.065/B: 0.050	36
126-16-4B 2.2 kW	16	80	90	24 DC	35	1.46	16	B	2.2	1.35×10-2	470×106	C: 0.050/B: 0.035	C: 0.160/B: 0.127	C: 0.085/B: 0.055	42.5
126-16-4B 3.7 kW	16	80	90	24 DC	35	1.46	16	B	3.7	1.35×10-2	470×106	C: 0.050/B: 0.035	C: 0.160/B: 0.127	C: 0.085/B: 0.055	57

*The dynamic friction torque, Td, is measured at a relative speed of 100 min^-1.

*Induction motors are fully sealed external fan types; power supplies are 3-phase 200 V/200 V/220 V (50 Hz/60 Hz/60 Hz), with four poles. (Conforms to the JIS C4210 standard.)

*If you desire a special voltage (5 Power Supply Specifi cations), diff erent number of poles, or the like for the induction motor, contact Miki Pulley.

[Dimensions]

Unit ［mm］

Model	Dimensions of part																			Dimensions of shaft
	A1	A2	B1	B2	C	D1	D2	E	F1	F2	G	J	K	L	H	T	Y	Z1	Z2	Q	S	U	V	W
126-06-4B 0.2 kW	65	90	90	105	65	100	130	27.5	61	-	2.6	48.5	102	335	-	-	3	13.5	6.5	25	11	12.5	M4×0.7, length: 8	4
126-08-4B 0.4 kW	80	110	110	130	80	125	145	32.5	72	126.5	3.2	63	127.5	389	167.5	-	2.5	15.5	9	30	14	16	M4×0.7, length: 8	5
126-10-4B 0.75 kW	105	135	140	160	90	150	163	35	81	133	3.2	80	154	450	182	-	3	20	11.5	40	19	21	M6×1, length: 11	5
126-12-4B 1.5 kW	135	160	175	185	112	190	180	42.5	97	145	4.5	108	194	538.5	-	244.5	3	24.5	11.5	50	24	27	M6×1, length: 11	7
126-16-4B 2.2 kW	155	200	200	230	132	230	199	45	109	153	6	135	256	629.5	-	293	4	28	14	50	24	27	M6×1, length: 11	7
126-16-4B 3.7 kW	155	200	200	230	132	230	223	45	109	166.5	6	145	256	655.5	-	293	4	28	14	60	28	31	M6×1, length: 11	7

*The output shaft keyways are old JIS standard class 2 while the key is old JIS standard class 1.

*When inserting pulleys or the like onto output shafts, use the supplied insertion set.

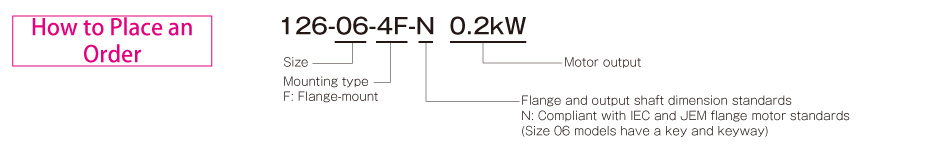

126-□-4F-N Types

[Specifications]

Model	Size	Dynamic friction torque Td ［N・m］	Static friction torque Ts ［N・m］	Coil (at 20℃)				Heat resistance class	Motor output ［kW］	Rotating part moment of inertia J ［kg・m2］	Total work performed until readjustment of the air gap ET ［J］	Armature pull-in time ta ［s］	Torque build-up time tp ［s］	Torque decaying time td ［s］	Mass ［kg］
				Voltage ［V］	Wattage ［W］	Current ［A］	Resistance ［Ω］
126-06-4F-N 0.2 kW	06	5	5.5	24 DC	11	0.46	52	B	0.2	1.28×10-4	36×106	C: 0.020/B: 0.015	C: 0.041/B: 0.033	C: 0.020/B: 0.015	8.9
126-08-4F-N 0.4 kW	08	10	11	24 DC	15	0.63	38	B	0.4	3.70×10-4	60×106	C: 0.023/B: 0.016	C: 0.051/B: 0.042	C: 0.030/B: 0.025	13
126-10-4F-N 0.75 kW	10	20	22	24 DC	20	0.83	29	B	0.75	1.40×10-3	130×106	C: 0.025/B: 0.018	C: 0.063/B: 0.056	C: 0.050/B: 0.030	18
126-12-4F-N 1.5 kW	12	40	45	24 DC	25	1.09	23	B	1.5	3.85×10-3	250×106	C: 0.040/B: 0.027	C: 0.115/B: 0.090	C: 0.065/B: 0.050	36
126-16-4F-N 2.2 kW	16	80	90	24 DC	35	1.46	16	B	2.2	1.35×10-2	470×106	C: 0.050/B: 0.035	C: 0.160/B: 0.127	C: 0.085/B: 0.055	42.5
126-16-4F-N 3.7 kW	16	80	90	24 DC	35	1.46	16	B	3.7	1.35×10-2	470×106	C: 0.050/B: 0.035	C: 0.160/B: 0.127	C: 0.085/B: 0.055	57

*The dynamic friction torque, Td, is measured at a relative speed of 100 min^-1.

*Induction motors are fully sealed external fan types; power supplies are 3-phase 200 V/200 V/220 V (50 Hz/60 Hz/60 Hz), with four poles. (Conforms to the JIS C4210 standard.)

*If you desire a special voltage (5 Power Supply Specifi cations), diff erent number of poles, or the like for the induction motor, contact Miki Pulley.

[Dimensions]

Unit ［mm］

Model	Dimensions of part													Dimensions of shaft
	A1	A2	D1	D2	D3	D4	F	G	K	L	T	Y	Z	Q1	Q2	S	U	V	W
126-06-4F-N 0.2 kW	90°	45°	160	130	110	130	-	8	107	335	-	3.5	10	23	25	11	12.5	M4×0.7, length: 8	4
126-08-4F-N 0.4 kW	90°	45°	160	145	110	130	124	10	130.5	389	-	3.5	10	30	30	14	16	M4×0.7, length: 8	5
126-10-4F-N 0.75 kW	90°	45°	200	163	130	165	131	12	157.5	451	-	3.5	12	40	40	19	21.5	M6×1, length: 11	6
126-12-4F-N 1.5 kW	90°	45°	200	180	130	165	145	12	197.5	539	133	3.5	12	50	50	24	27	M6×1, length: 11	8
126-16-4F-N 2.2 kW	90°	45°	250	199	180	215	153	16	260.5	640	161	4	15	60	60	28	31	M6×1, length: 11	8
126-16-4F-N 3.7 kW	90°	45°	250	223	180	215	166.5	16	260.5	656	161	4	15	60	60	28	31	M6×1, length: 11	8

*The flange and output shaft dimensions conform to IEC and JEM standard flange motors. (Size 06 has a key and a keyway.)

*When inserting pulleys or the like onto output shafts, use the supplied insertion set.
